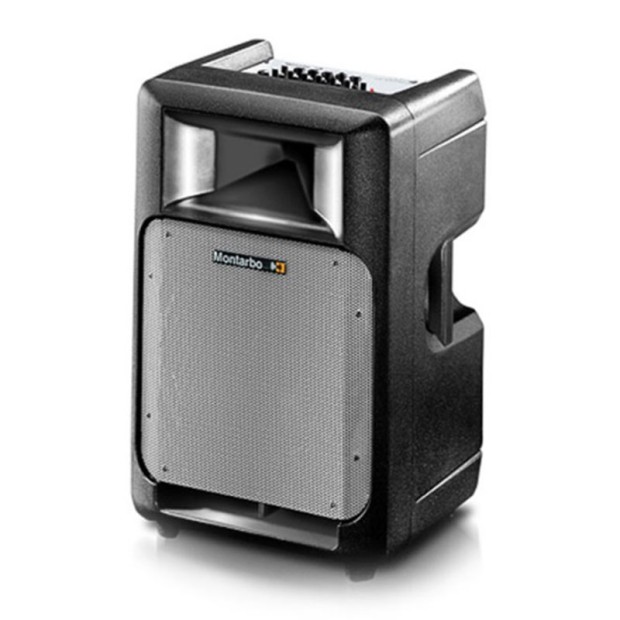

Ideal for keyboards, accordions, one-man-bands, piano-bar and many other situations, the though lightweight and compact MP4 offers a host of professional features and a level of quality unmatched by similar products.
APPLICATIONS
Unlimited range of applications, both indoor an outdoor: from the beach party to the piano-bar.

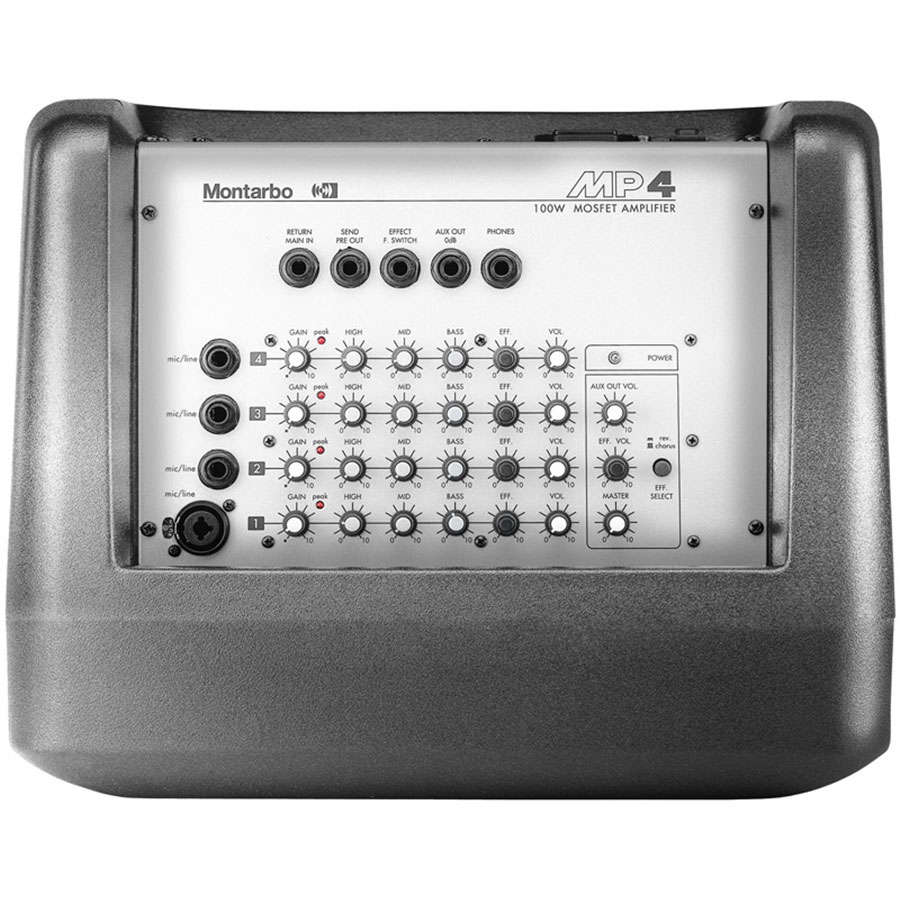

Channel 1
- Micro sensitivity -52dB / impedance 2.2 kΩ
- Line sensitivity -32dB / impedance 10kΩ
Channel 2 - 3 -4
Mic/Line sensitivity -32dB / impedance 10 kΩ
All channels
- Channel gain range 34dB
Equalization:
- HF ± 15 dB @ 15 kHz
- MF ± 15 dB @ 600 Hz
- LF ± 15 dB @ 50 Hz
- Equivalent input noise < -112dB
- Peak LED indicator +17dB, 6dB before clipping
- Aux output nom. level 0dB / max level +22 dB
- Pre-out/Main-in nom. level 0 dB
- Phones output load impedance 200 ÷ 600 Ω
- Digital effects processor (Reverb, Chorus)
- Conversion 24-bit Δ-Σ
- Bandwidth 40Hz ÷ 15kHz
