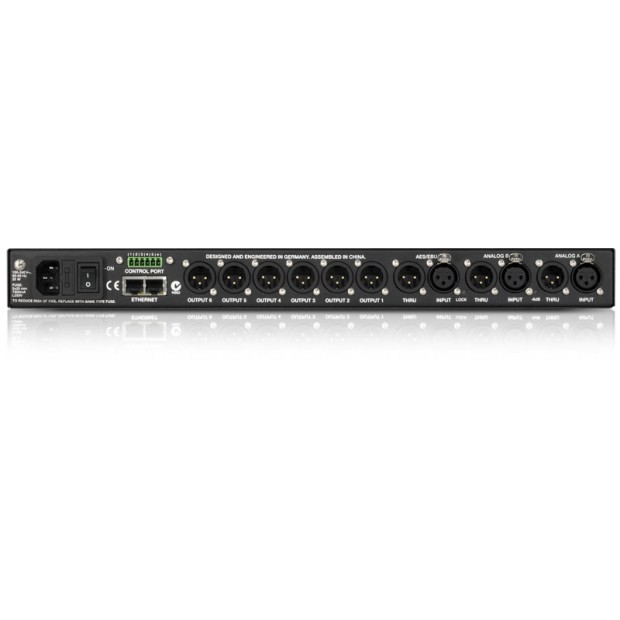

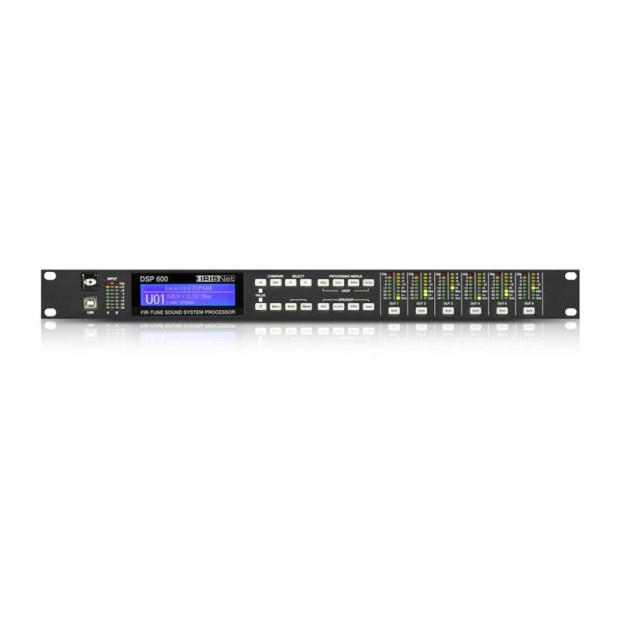

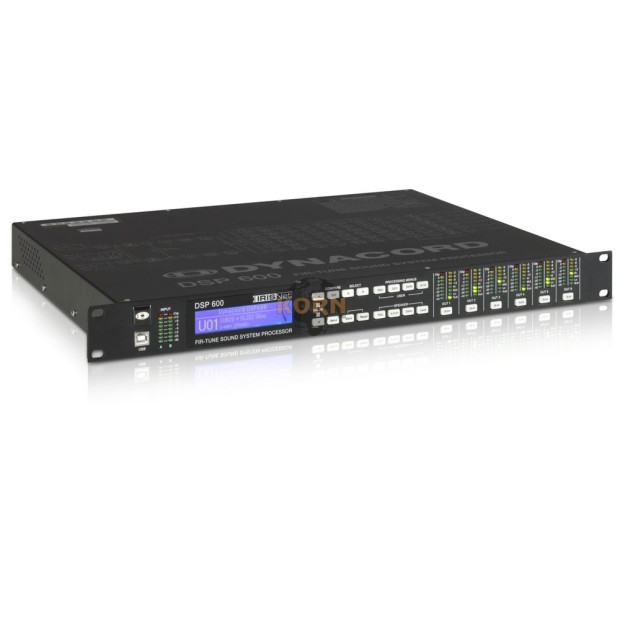

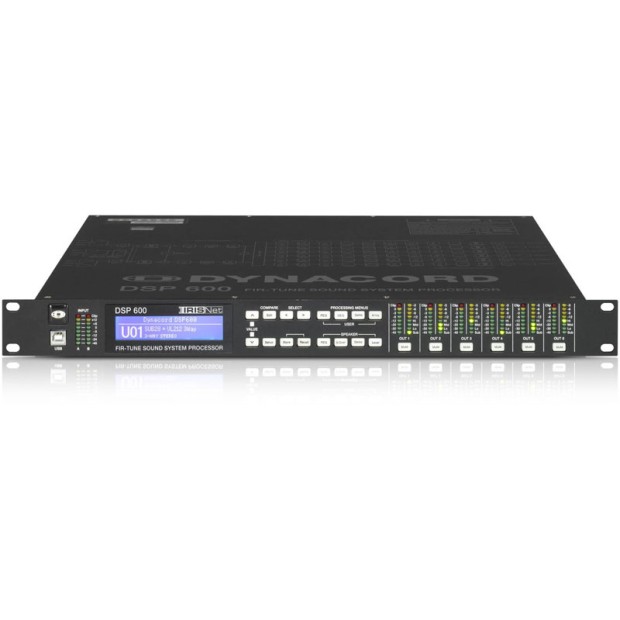

Networkable digital sound system processor with 2 analogue, 2 digital AES/EBU inputs and 6 analogue outputs offering audio signal processing of the highest quality
The DSP 600 is a networkable digital sound system processor with 2 analogue, 2 digital AES/EBU inputs and 6 analogue outputs offering audio signal processing of the highest quality with a dual-core DSP-topology, 24-bit linear AD/DA converters and with 48-bit double-precision processing resolution.
At > 116 dB, the dynamic range of the DSP 600 is at the upper extreme of what is technically feasible; THD is less than 0,002 %.
With IIR filters and high-resolution 512-tap FIR filters, precise loudspeaker protection and a multi-stage delay concept, the DSP 600 sets new standards in the field of digital loudspeaker processing.
Over IRIS-Net, any desired number of DSP 600 processors, together with other IRIS-Net capable devices, can be configured and operated swiftly and conveniently.
The configuration and control of the DSP 600 is handled either directly at the device or with the help of IRIS-Net via Ethernet and / or USB.
Direct-access keys make it possible to edit parameters swiftly at the device. In all, 90 program-storage locations are provided, of which 60 are dedicated to factory-presets and a further 30 available for freely programmable user-presets (compatible with RCM-26 and P 64 speaker-settings)
A unique and particularly remarkable feature is the multi-stage delay concept featuring dedicated delays for different applications in complex audio systems.
